Commodore Video Cable Kit (Chroma + Luma + Composite + Audio) - C-64 / C-128
[8pin Video Port]

Specifications :
8 PIN Male Plug DIN (Commodore) to RCA Female Jack (Composite Video),
RCA Male Plug (Chroma Video), RCA Male Plug (Luma Video) and RCA Male Plug (Audio).
Comes with Free RCA Male Plug to RCA Male Plug Video Cable to connect to a modern TV.

Product Compatibility :
Commodore C64 and C128 Home Computers

Typical Usage :
This cable is used to provide separate (split) video signals from the monitor port of your vintage Commodore.

Function :
Typically used to connect to video monitors such as the Commodore monitors that have separate video inputs for Chroma (C), Luma (Y) and Composite signals (C+Y). Can also be used for S-Video with the addition of an S-Video adapter with Chroma and Luma inputs.

This cable comes with a removable / replaceable composite video patch cable so it can also be used with most modern TV's.

Here's some sample JPEG photos

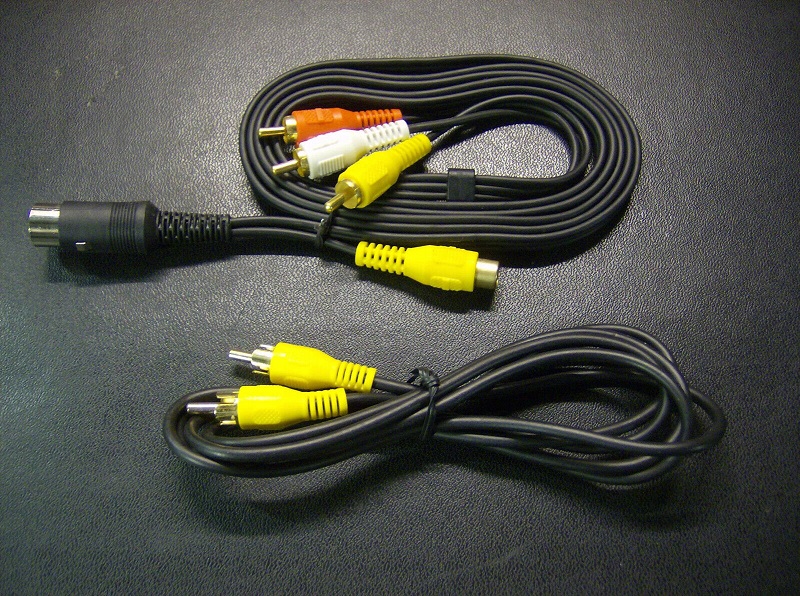

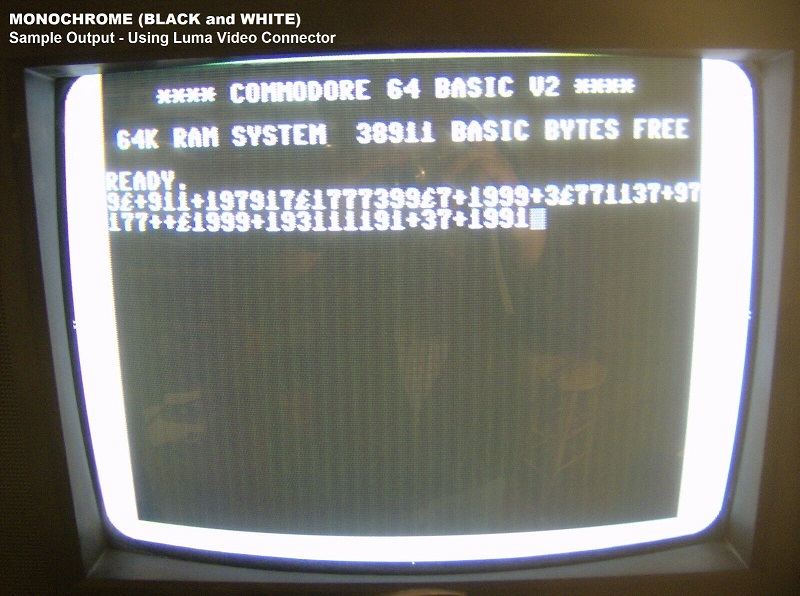

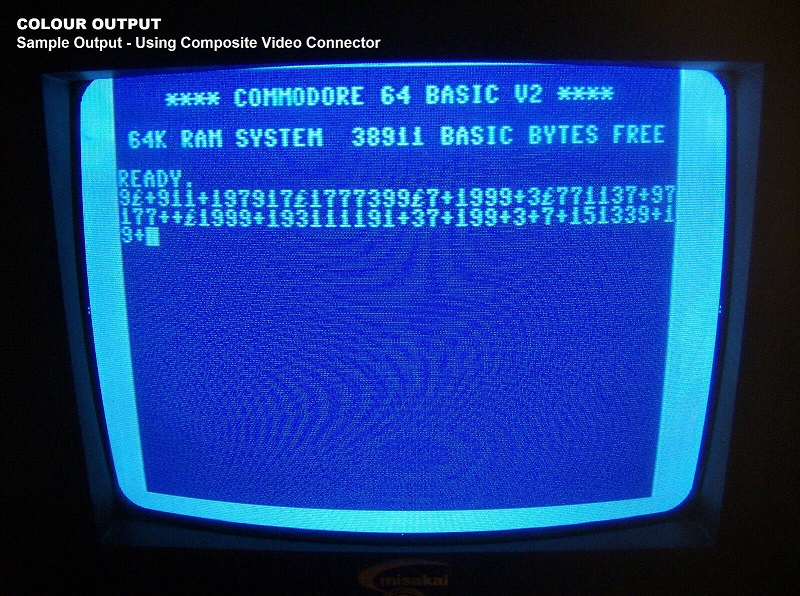

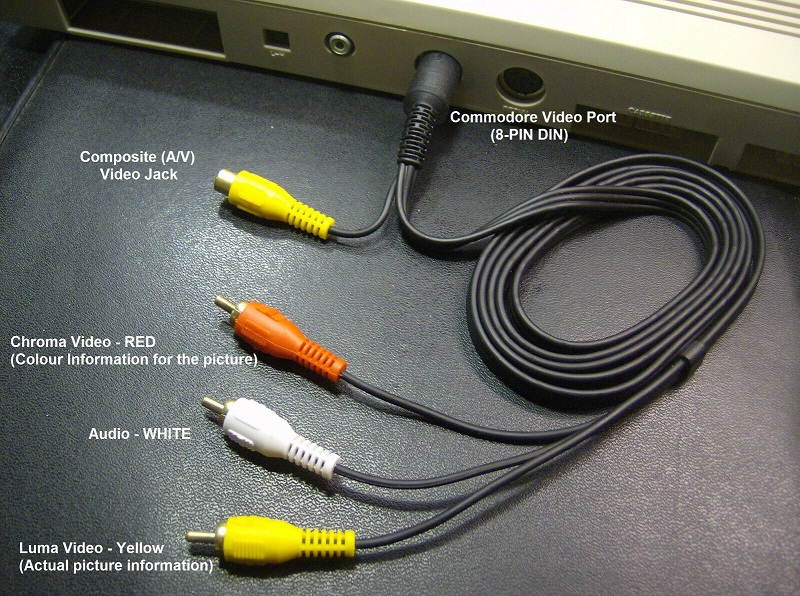

Commodore Chroma, Luma and Composite Video Cable Commodore Video Cable Kit Commodore Video Cable Chroma + Luma - Color Output Commodore Video Cable Luma - Black and White Output

HTML Drawing :

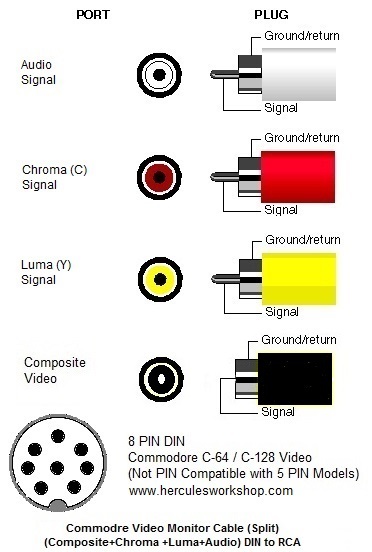

Commodore Split Chroma and Luma Video Cable Drawing


Product Options :
Total Price with Shipping
Cable Length

Contact us about this product

Important Shipping Information
Shipping Costs listed are for Canada and the USA only. We offer two shipping options for this product, both are Air Mail and both are insured but ONLY the Tracked Packet comes with a Tracking Number. For International orders please contact us prior to checkout for a shipping quote.

Sales Tax - Canadian Residents
We are a registered business in the Province of Ontario and as such we are required to collect GST/HST Sales Tax from all Canadian Residents.

Warranty / Returns
Hercules Workshop is committed to excellent service. Orders are processed immediately, with most shipments made within 48 hours. In most cases your items will arrive within 10 to 14 days of your order being received. If you are not satisfied with an item, we will promptly exchange the product or refund the purchase price. Hercules Workshop has a 90-calendar day return policy.
