Commodore Video Monitor TV Cable (S-Video + Phono Audio Connector) - C-64 / C-128
[8 PIN Video]
8 PIN Male Plug DIN (Commodore) to 4 PIN Male Plug miniDIN (S-Video)
Double Shielded Cable, 3.5mm Phono Female Audio Jack
Comes with Free 3.5mm Phono Male Plug to 3.5mm Phono Male Plug Audio Cable
Product Compatibility :
Commodore C64 and C128 Home Computers
Typical Usage :

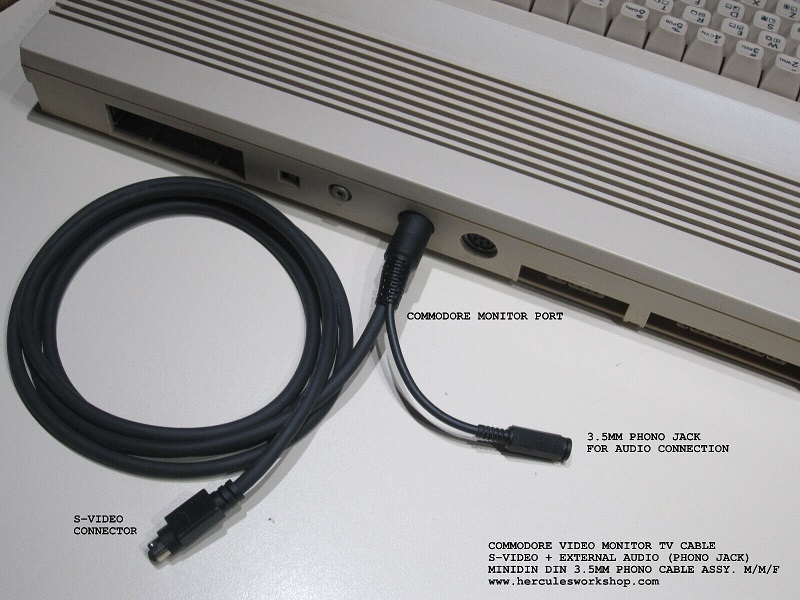

This cable is used to connect the Monitor port of your Commodore Home Computer to the S-Video input of your modern TV. It has a mini-DIN 4-pin plug for S-Video and a 3.5mm Phono jack for audio connection. See the photos for connection examples.
S-Video is the highest quality of video signal available from the Commodore 8-bit computers. S-Video is a multichannel video signal composed two separate signals. The first signal is a luminance signal (Y or Luma) that carries the black and white picture information as well as horizontal and vertical sync. The second signal is a chrominance signal (C or Chroma) that carries the colour information for the picture.

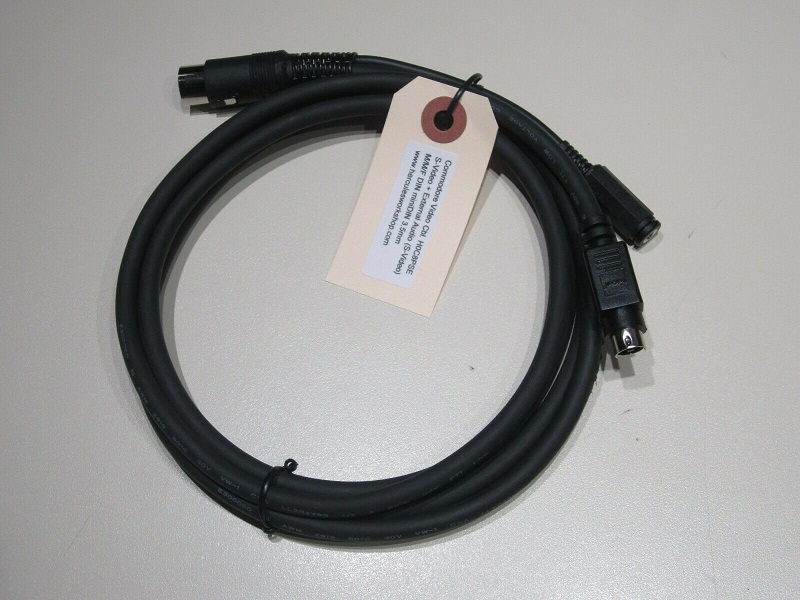

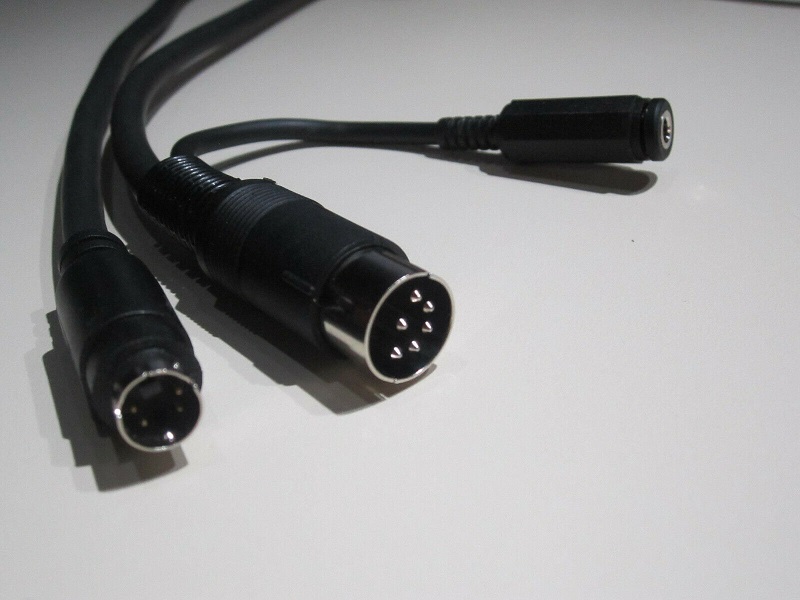

Here's some sample JPEG photos

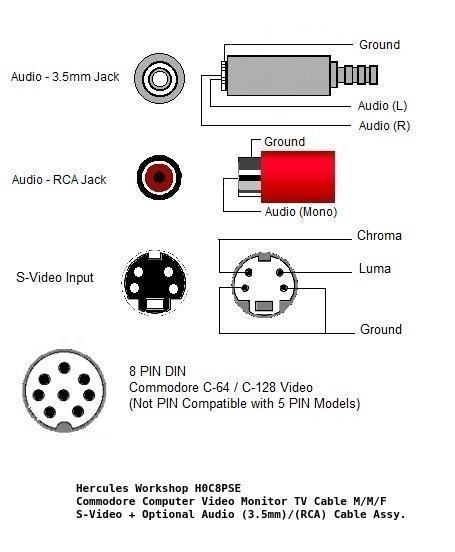

HTML Drawing :
Product Options :
