Atari Video Monitor TV Cable (S-Video + RCA Audio Connector) - 800 65XE 130XE

Specifications :
5 PIN Male Plug DIN (Atari) to 4 PIN Male Plug miniDIN (S-Video)
Double Shielded Cable, RCA Female Audio Jack
Comes with Free RCA Male Plug to RCA Male Plug Audio Cable

Product Compatibility :
Atari 800 / 65XE / 130XE Home Computers

Typical Usage :
This cable is used to connect the Monitor port of your Atari Home Computer to the S-Video input of your modern TV. It has a mini-DIN 4-pin plug for S-Video and a RCA jack for audio connection. See the photos for connection examples.

Function :
S-Video is the highest quality of video signal available from the Atari 8-bit computers. S-Video is a multichannel video signal composed two separate signals. The first signal is a luminance signal (Y or Luma) that carries the black and white picture information as well as horizontal and vertical sync. The second signal is a chrominance signal (C or Chroma) that carries the colour information for the picture.

Here's some sample JPEG photos

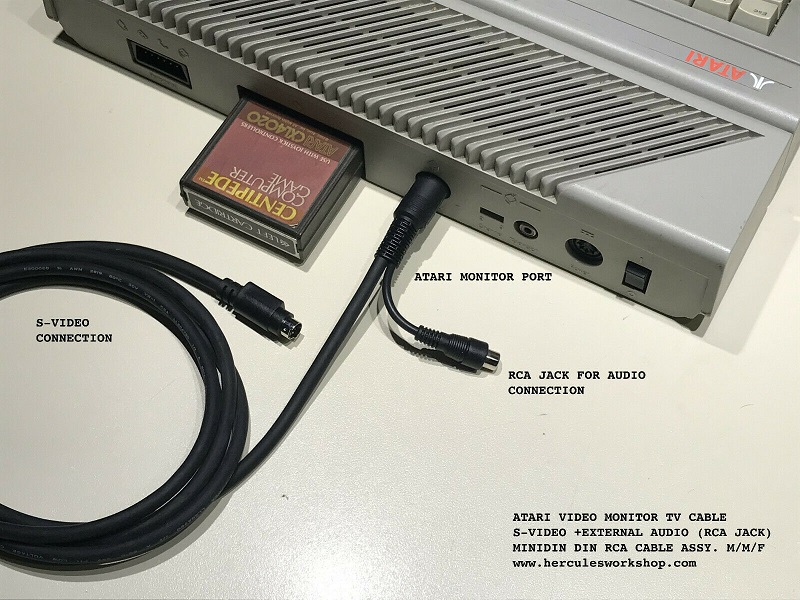

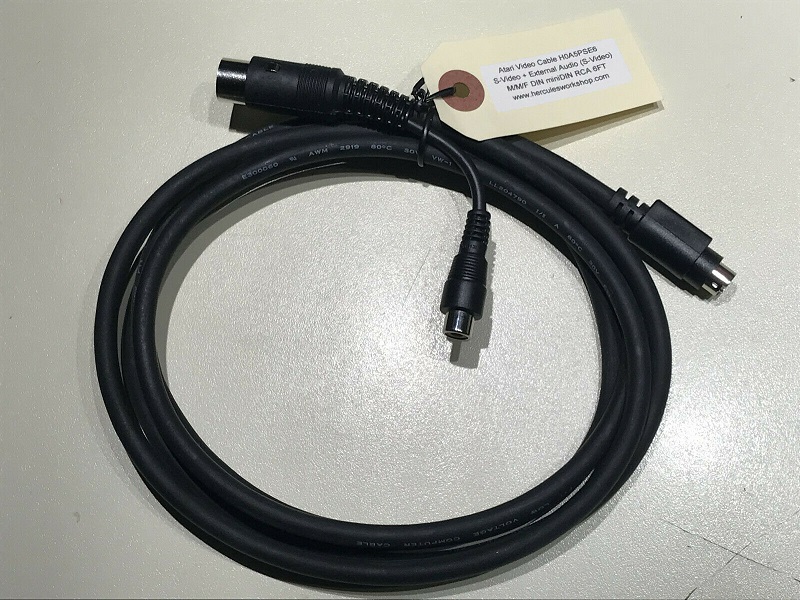

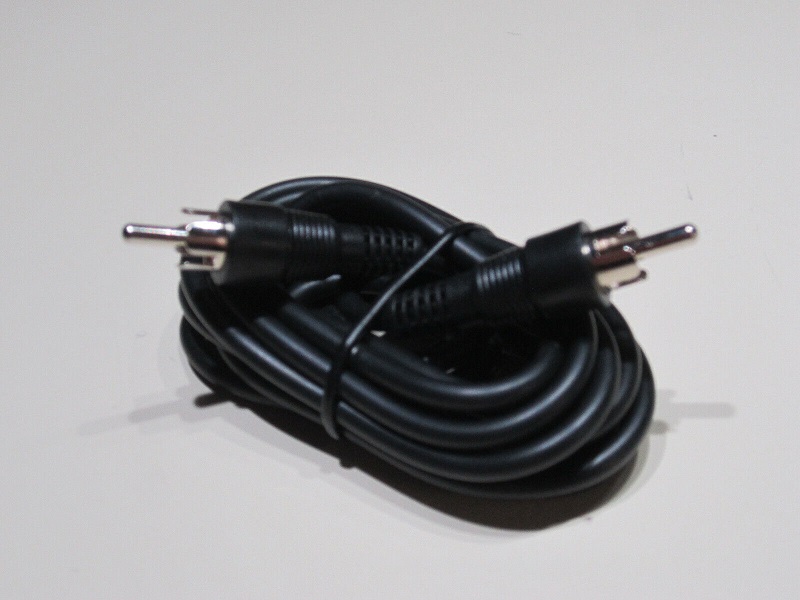

Connecting Atari S-Video Cable with RCA Connector Atari S-Video Cable with RCA Connector RCA Phono Audio Cable

HTML Drawing :

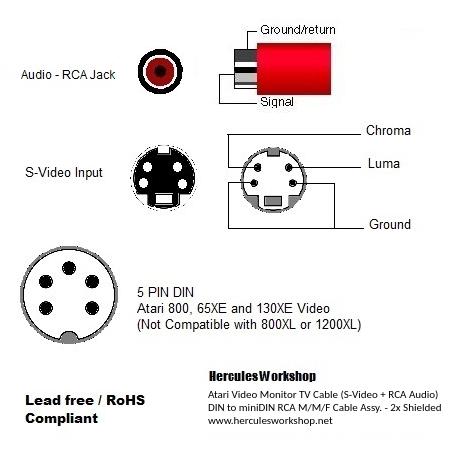

Atari S-Video Cable Drawing
